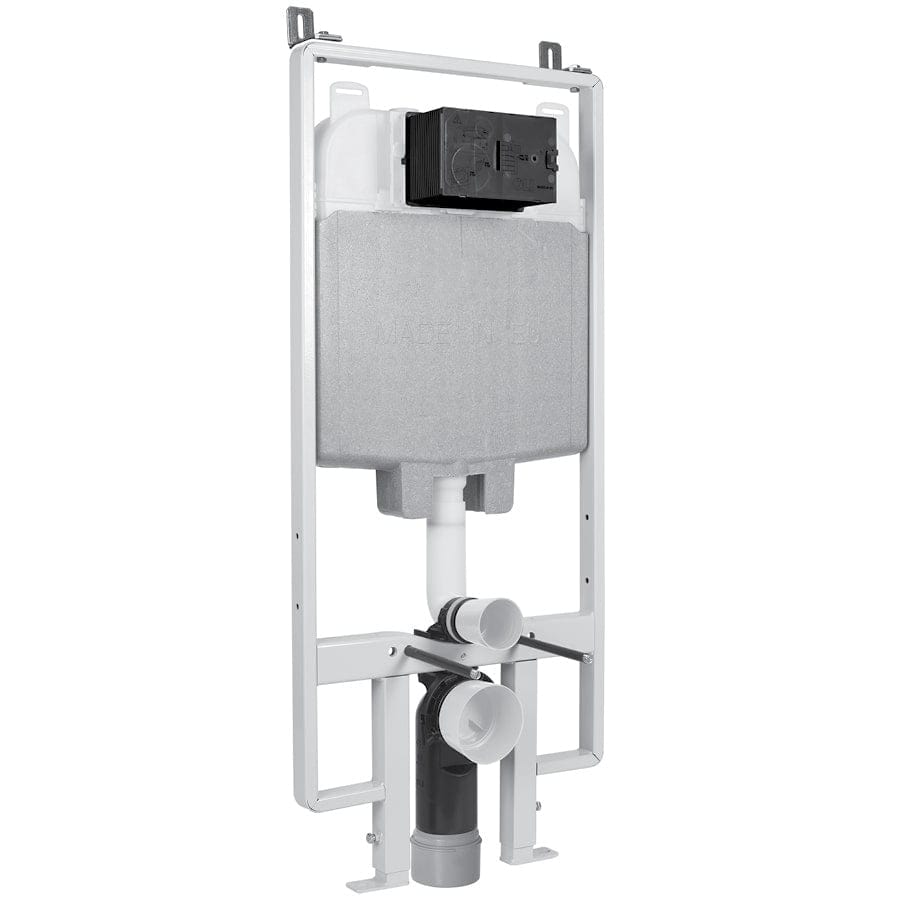

Progetto S10 Full Frame Inwall Cistern

SPS100FF

The Progetto concealed cistern range provides a solution for all installation requirements and includes pneumatic & mechanical flush options, in-wall, under bench and remote cistern mounting options and a large range of modern flush panels and buttons.

500mm W x 90m D x 1168mm H

• Brand: Progetto
• 4 Star WELS water rating
• 10 year warranty
• Concealed inside wall cavity, directly behind toilet pan
• Wall cavity thickness required: 90mm
• Minimum installation height from floor level to top of frame is 1170mm
• Includes 90mm S trap pan connector (fits into 100mm PVC pipe)
• Frame tested for 400kg
• Designed for wall hung toilet pans
• 4 Star WELS rating (4.5/3 litre dual flush) can be adjusted to 6/3 litre flush
• Cistern pre-assembled into height adjustable steel frame making an extremely quick and simple installation - no extra pan bracket required

• Only compatible with Metal and Oli flush panels
